400m Depth Borehole Drill Rig Hydraulic Rotary DTH Water Well Drilling Truck Mounted
1.Description:
○The drilling rig can use air DTH Hammer drilling and mud drilling.
○The truck chassis adopts the 6X4 special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
○It's a hydraulicrotary drilling rig with Normaland Reverse Circulation for both Mud and Air. It is equipped with BW600/30 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
○The power of drilling rig comes from a diesel engine,80kw engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
○Mechanical power head.
2.Applications:
It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well, monitoring well and exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.
3.Specifications:
(For reference,more details please contact us)
| Drilling Parameter | | Hole diameter: | 120--1500(mm) | | Hole depth: | 400(m) | | Run Of Rod: | 3,4(m) | | Drill rod diameter: | φ73 φ89 φ95 φ133(mm) | | Drilling Technology: | Normaland Reverse Circulation for both Mud and Air | | Down-The-Hole hammers: | Middle-High-Pressure Air | | Performance parameter | | Drill Head Inside Diameter: | φ80 φ120 | | Drill Head lifting Force(kN): | 130 | | Drill Head Spin Speed: | A(Forward:20-33-73,Reverse:13-23-47r/min) | | B(Forward:41-66-146,Reverse:26-43-94r/min) | | B(Forward:36-58-127,Reverse:23-37-80r/min) | | Shape Parameters | | Dimensions: | (L-W-H) Working conditions 9600×2950×7900(mm) | | Transport status: | (L-W-H) 10200×2470×3300(mm) | | Supporting Form: | Hydraulic Unit | | Mast Up-Down: | Hydraulic Unit | | Rig mass: | 12500(Kg) | | Chassis: | Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive) | | Power Unit: | Diesel Engine | | Power: | 84(kW) | | Pump: | BW600/30 Mud Pump | | Flow(m³/h): | 720 513 335 | | Pressure(MP): | 3 4 5 | | Main Hoist Lifting Force: | 25(kN) | | Auxiliary Hoist Lifting Force: | 8(kN) | | Notes: Drill head spin speed can be selected, A is normal | | |

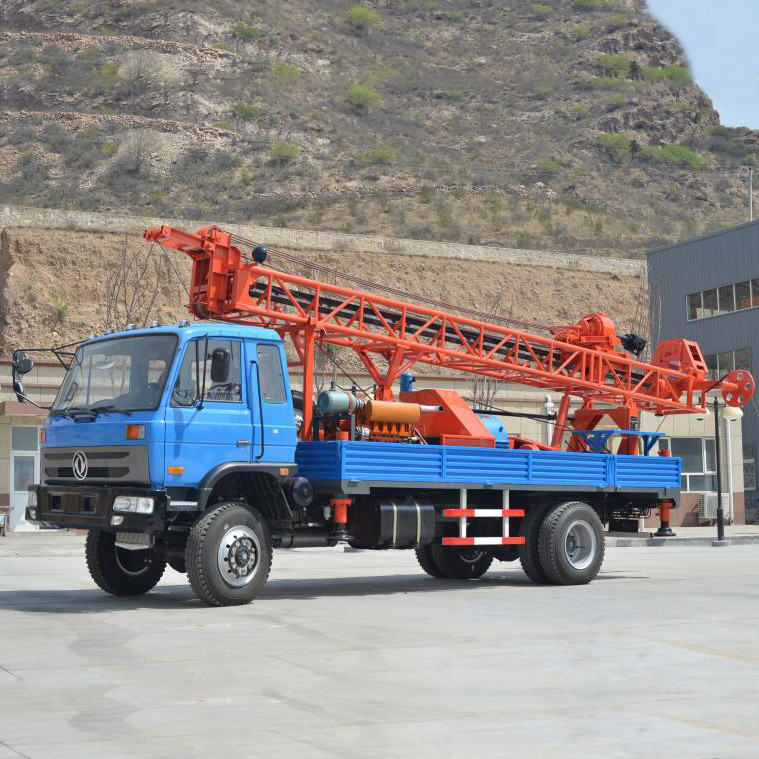

The Photo of products
It adopts domestic famous 84kw high-power diesel engine.which features strong power and ability to meet the working require-ment of various operation environment.Access to the manufacturer's joint warranty and afer-sales guarantee is offered.
Double-pump hydraulic double power head,en-sures greater torque and faster drilling speed.

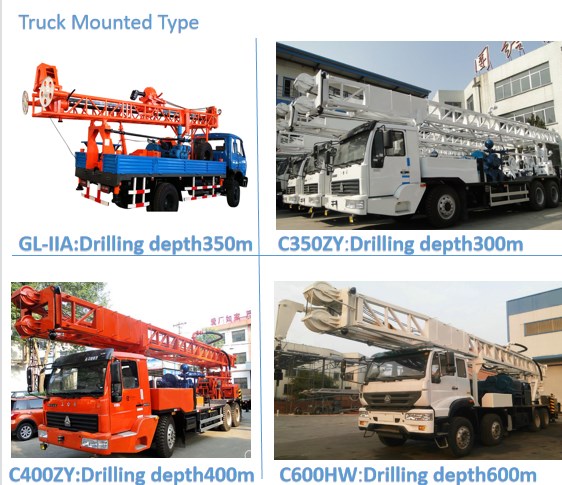

Related Product

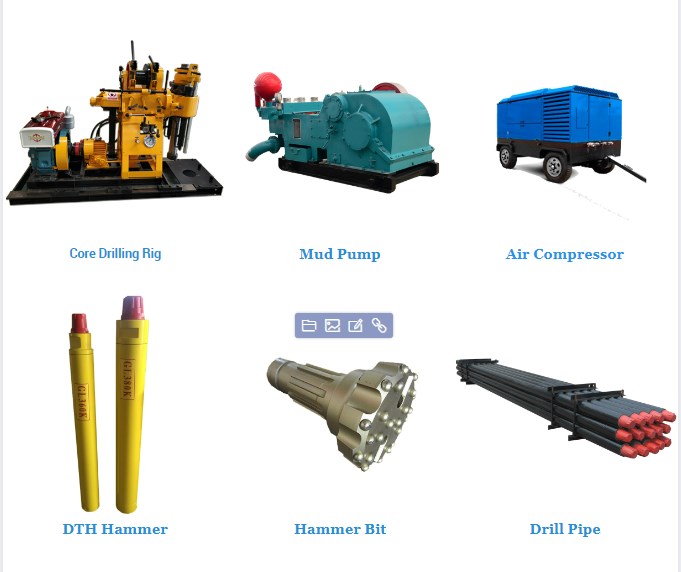

Drilling RIG:
Drilling Tools:
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
