Product Description:

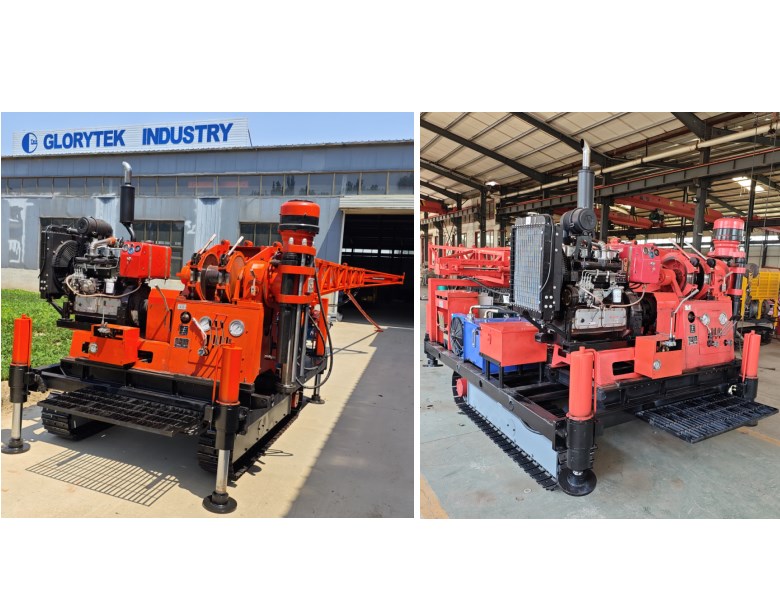

Exploration Drilling Rigs are an important tool for surface and deep exploration. With an impressive diesel engine rated power of 30.1kw and a motor rated speed of 1470 (r/min), these rigs are designed to withstand the toughest of conditions. The drill rig dimensions of L2200*W900*H1800 make it suitable for a wide range of applications. The spindle stroke of 560mm and wire rope capacity of 50m allows for versatile exploration. It is an advanced, efficient and reliable exploration choice.
Features:
- Product Name: Exploration Drilling Rigs
- Drill-tower height: 7.5/8.5m (Optional)
- Motor rated speed: 1470 (r/min)
- Usage: Offshore Exploration Rig
- Drilling Depth: Up To 1,000 Feet
- Motor rated power: 22kw
Technical Parameters:
| Parameter | Value |
| Type | Inclined Hole Deep Exploration Rig |
| Drilling Depth | Up To 1,000 Feet |
| Motor Rated Speed | 1470(r/min) |
| Cylinder Leg Stroke | 1000/1600mm(Optional) |
| Drill-Tower Height | 7.5/8.5m(Optional) |
| Wire Rope Dia | 12.5/14(Optional) |
| Hydraulic Tower Height | 8.5m |
| Wire Rope Capacity | 50m |
| Motor Rated Power | 22kw |
| Drill Rig Dimensions | L2200*W900*H1800 |
| Diesel Engine Rated Power | 30.1kw |
Applications:
Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.
Support and Services:
Exploration Drilling Rigs Technical Support and Service
We provide technical support and service for Exploration Drilling Rigs. Our team of experienced engineers can provide you with comprehensive on-site and remote technical support, including:
- Troubleshooting
- System maintenance
- Installation and commissioning
- Spare parts and accessories supply
- Operator training
Our service philosophy is to ensure your Exploration Drilling Rigs continue to operate at optimal performance and efficiency. We are committed to providing a comprehensive and timely service, so you can get the most out of your investment.
Packing and Shipping:
Exploration Drilling Rigs are shipped with a variety of packaging options. Depending on the size of the rig and the customer's needs, the rig may either be shipped in a standard container or on a flatbed truck. If a standard container is used, it will typically be lined with a protective material to prevent damage during transit and may also include foam padding to ensure the equipment is secure. If the rig is too large to fit in a standard container, it will be shipped on a flatbed truck with a specialized tarping system to protect it from the elements.
FAQ:
- Q: What brand name is the Exploration Drilling Rigs?
A: The brand name of the Exploration Drilling Rigs is Glorytek. - Q: What is the model number of the Exploration Drilling Rigs?
A: The model number of the Exploration Drilling Rigs is GLXY-2T. - Q: Where is the Exploration Drilling Rigs from?
A: The Exploration Drilling Rigs is from China. - Q: What certifications do the Exploration Drilling Rigs have?
A: The Exploration Drilling Rigs have CE, TUV, and SGS certifications. - Q: What is the minimum order quantity of the Exploration Drilling Rigs?
A: The minimum order quantity of the Exploration Drilling Rigs is 1SET.
