exploration geotechnical construction exploration inclined hole drilling rig
Product Description:

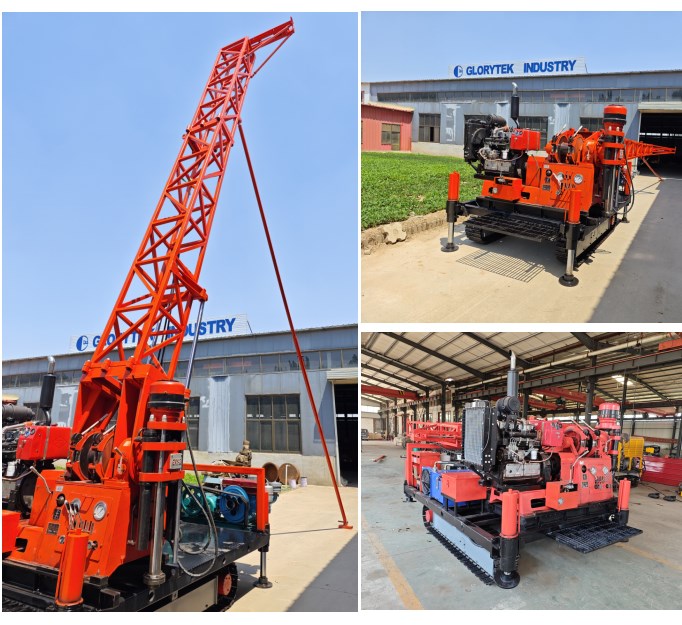

Exploration Drilling Rigs are powerful core drill rig suitable for mining exploration drilling, geotechnical construction exploration, inclined hole drilling. With a wire rope capacity of 50m and a weight of 420kgs/1100kgs (including/without power unit), these rigs are designed to tackle the toughest of exploration jobs. The wire rope diameter can be chosen between 12.5/14(Optional), while the hydraulic tower height is a whopping 8.5m.
Features:
- Product Name: Exploration Drilling Rigs
- Usage: Geological Exploration
- Hydraulic tower height: 8.5m
- Cylinder leg stroke: 1000/1600mm (Optional)
- Motor rated power: 22kw
- Weight (without power unit): 1100kgs
- Specialty: inclined hole drilling
Technical Parameters:
| Product Feature | Specification |
| Max. lifting capacity (single rope) | 3000kgf |
| Spindle stroke | 560mm |
| Drill rig dimensions | L2200*W900*H1800 |
| Hydraulic tower height | 8.5m |
| Diesel engine rated power | 30.1kw |
| Drilling Depth | Up To 1,000 Feet |
| Motor rated power | 22kw |
| Usage | Geological Exploration Inclined Hole Drilling |
| Cylinder leg stroke | 1000/1600mm(Optional) |
| Drill-tower height | 7.5/8.5m(Optional) |
Packing and Shipping:
Packaging and Shipping Exploration Drilling Rigs
Exploration Drilling Rigs are heavy and bulky items to transport, and must be carefully packaged and shipped to ensure its safe arrival to the customer.
Prior to shipment, the Exploration Drilling Rigs must be carefully inspected and tested to ensure it is in good working order.
The Exploration Drilling Rigs should be cleaned and dried to prevent any rust and corrosion during transit.
It is important to choose the right packaging material that is strong and durable for the Exploration Drilling Rigs. Some of the common packaging materials used are cardboard boxes, wooden crates, bubble wraps, shrink wraps, and styrofoam.
The Exploration Drilling Rigs should be securely packed inside the packaging material to prevent any damage during shipping. It is also important to label the package clearly with the contents to ensure it is delivered safely and efficiently.
The Exploration Drilling Rigs should be shipped via a reliable carrier to ensure it is delivered safely and within the specified time.
FAQ:
- Q: What is the brand name of Exploration Drilling Rigs?
- A: The brand name of Exploration Drilling Rigs is Glorytek.
- Q: What is the model number of Exploration Drilling Rigs?
- A: The model number of Exploration Drilling Rigs is GLXY-2T.
- Q: Where are Exploration Drilling Rigs manufactured?
- A: Exploration Drilling Rigs are manufactured in China.
- Q: What certifications do Exploration Drilling Rigs have?
- A: Exploration Drilling Rigs have CE, TUV, and SGS certifications.
- Q: What is the minimum order quantity for Exploration Drilling Rigs?
- A: The minimum order quantity for Exploration Drilling Rigs is one set.
